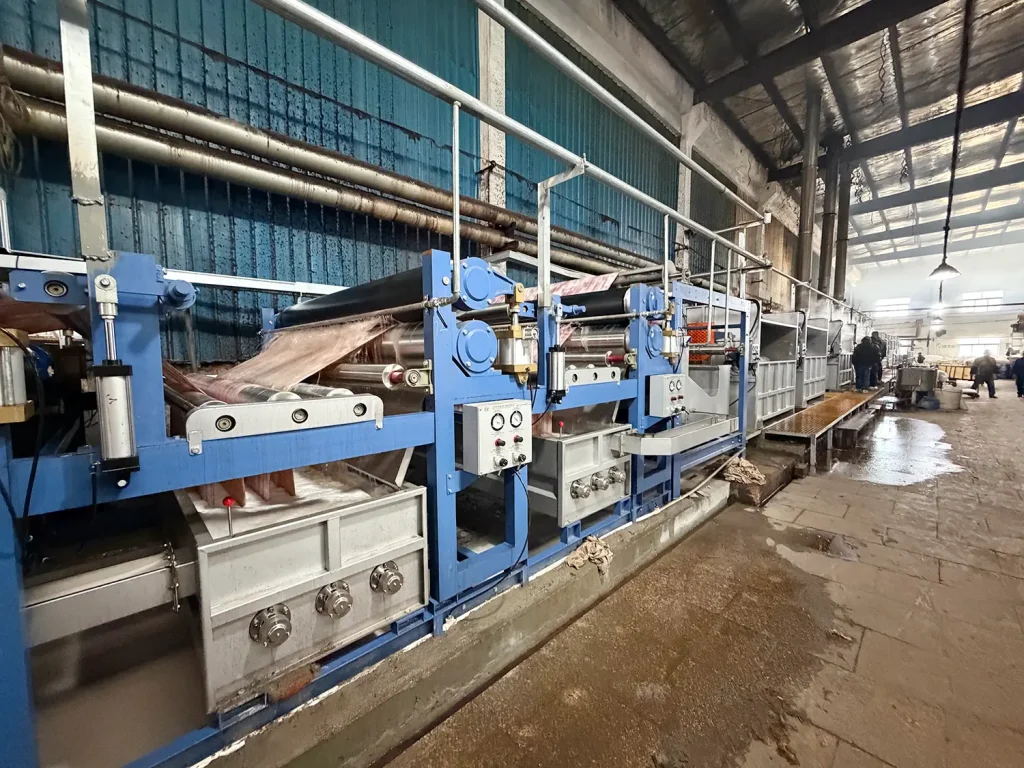

Textile Washing Machine After Dyeing

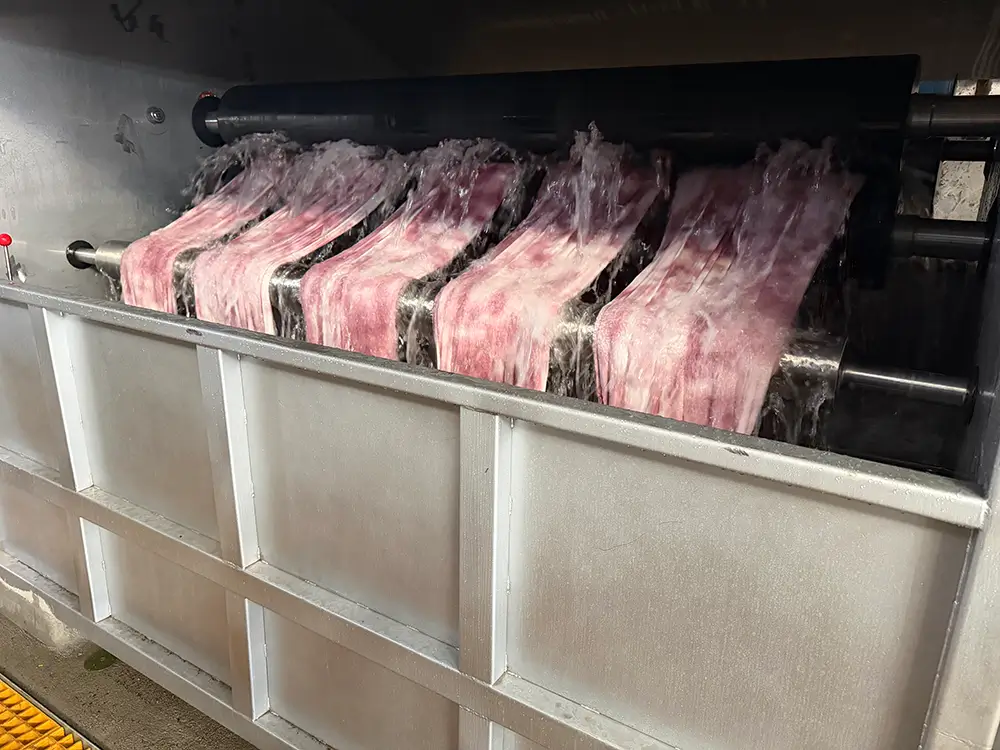

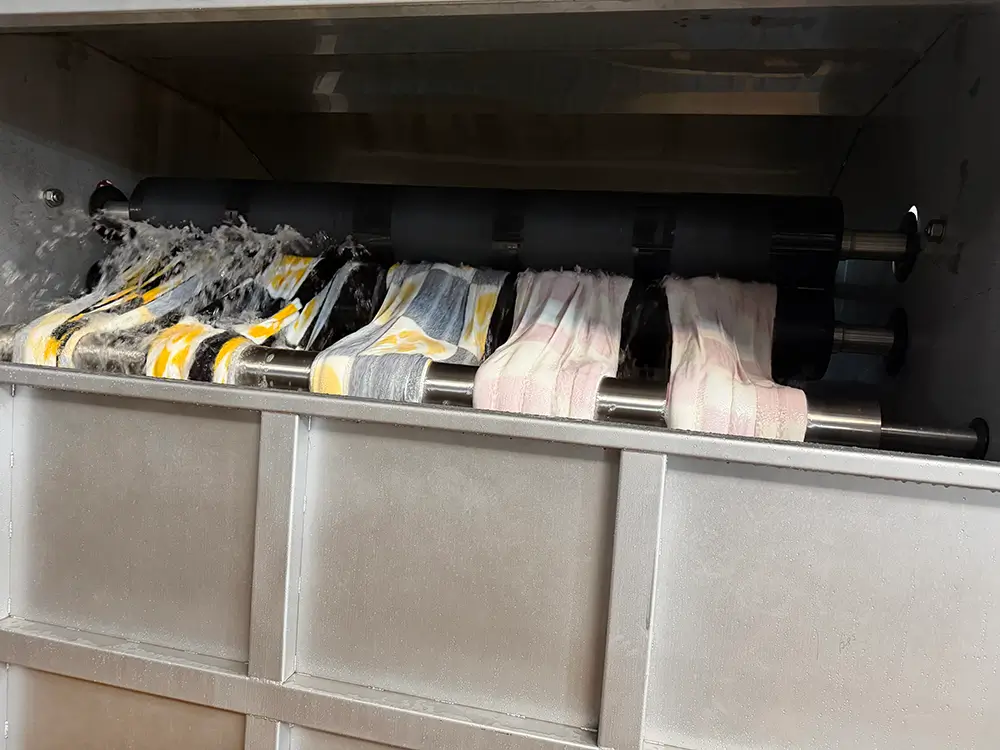

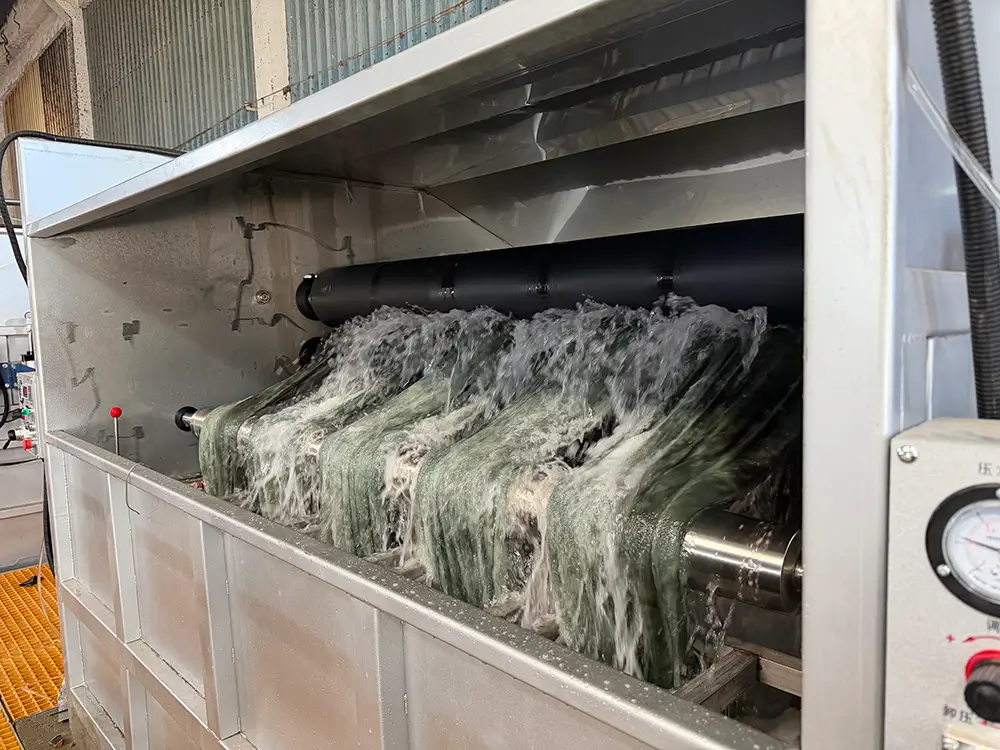

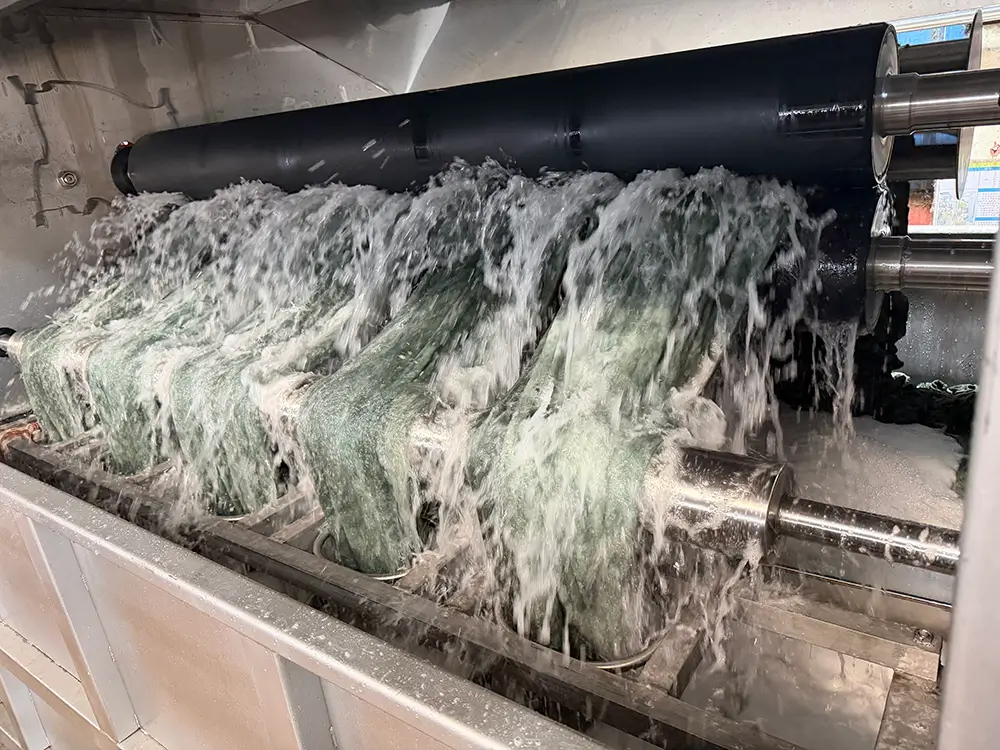

This rope washing machine features needle and shuttle dual-purpose design, suitable for post-dyeing wash, post-printing wash, and pre-treatment washing. Multi-functional design concept adapts to diverse production requirements. Reciprocating wash mode increases fabric passes through nozzles, enhancing washing efficiency. Overflow washing mode reduces production energy consumption.

>85%

Water Savings

50%

Labor Reduction

67%

Space Savings

24/7

Stable Operation

Core Technology:

Modular & Integrated Design – Continuous, customizable, highly integrated system (e.g., acid neutralization, softening, and conditioning all-in-one)
Ultra-High Efficiency – Proprietary process achieves 8-10x washing frequency compared to traditional methods
Compact Footprint – 67% less floor space than traditional long-range equipment
Energy Efficient – Low consumption of water, electricity, and steam (85% water reduction vs. conventional)
Versatile Application – Suitable for various fabrics and processes; superior hand feel compared to open-width washing and dyeing vats
High Automation – Reduced labor requirements by approximately 50%
Dynamic Filtration – Integrated scouring process significantly improves fabric surface smoothness
Premium Quality – Core electrical components from Europe, 60% thicker steel plates than competitors

Your Benifits Of Our Rope Washing Line

Revolutionary technology integration for optimal performance

Ultra-High Washing Efficiency

Core Technology

Innovative Reciprocating Flush Technology + Adjustable Overflow Water Wash

8-10x washing frequency vs. traditional methods
Enhanced cleaning power, shorter processing time
Low-tension mode for superior soft hand feel
Prevents creases, holes, and fabric skewing
Maximum color fastness and cleanliness

Suitable for various fabrics

Suitable for various fabrics. Enhanced product quality with 30%+ process time reduction.

Full-Process Intelligent Automation

Core Technology

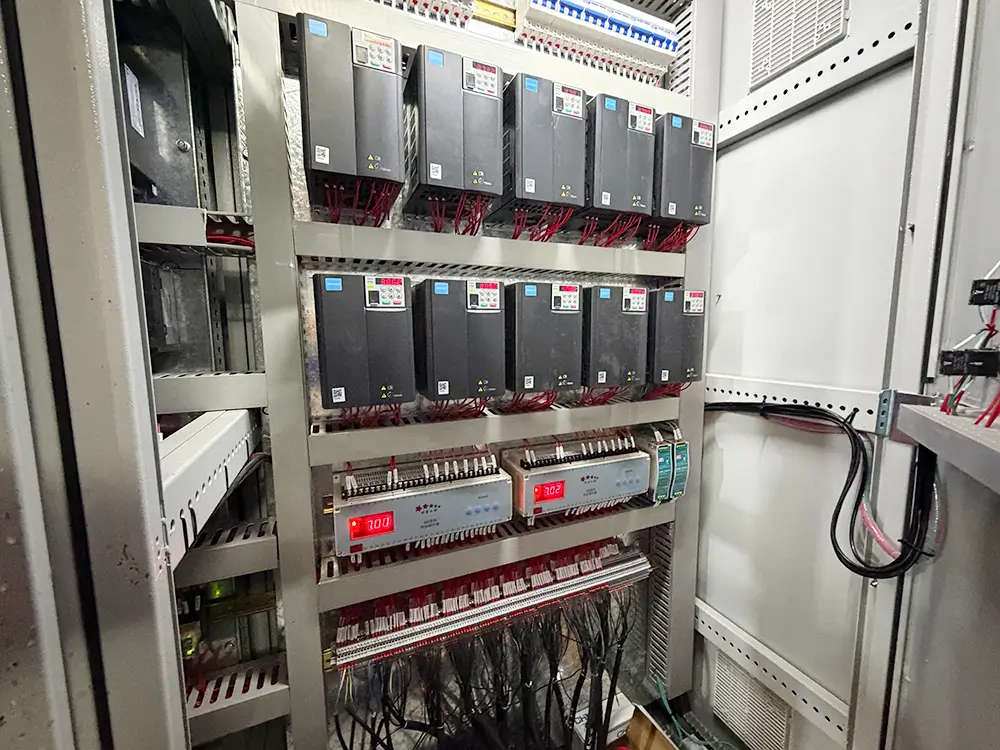

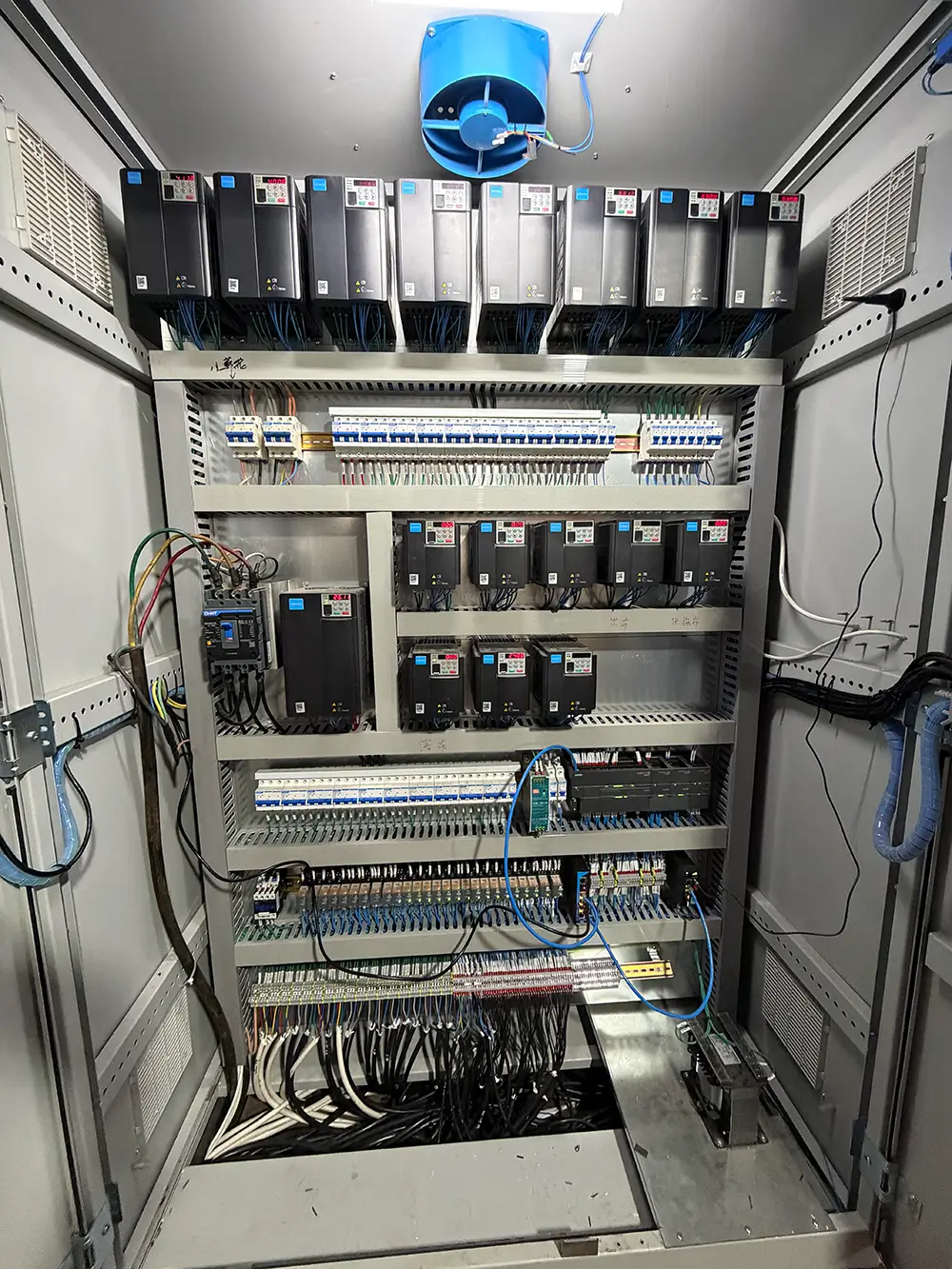

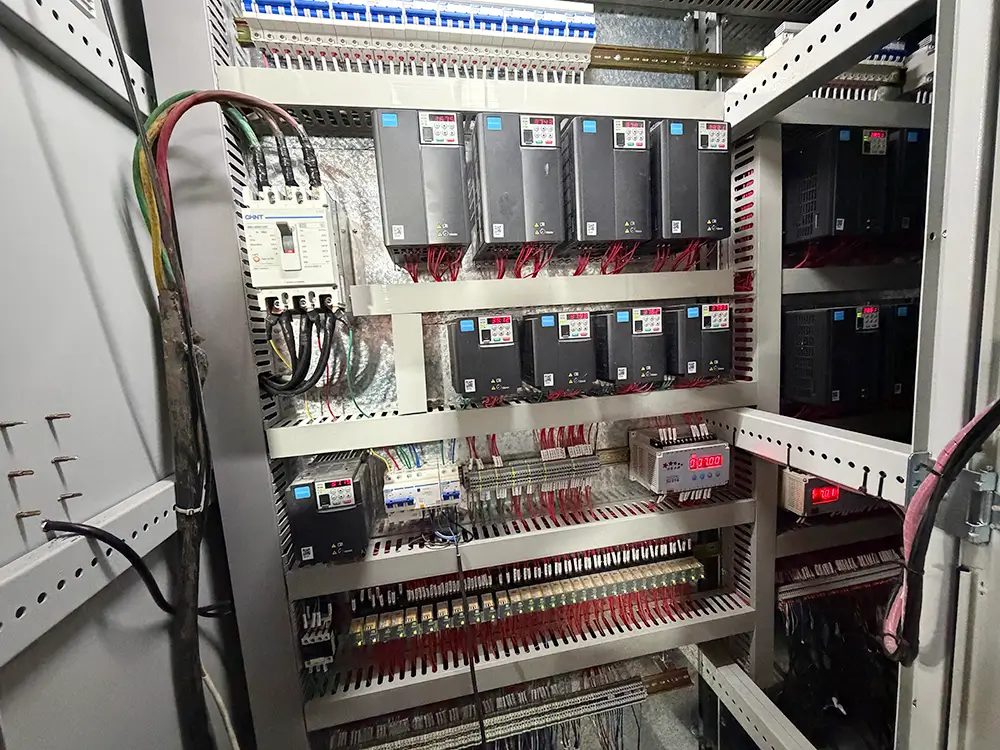

Siemens PLC + Smart Tension Control + Auto Feeding System

Precise PLC control with programmable parameters (speed, temperature, pH, feeding). One-touch adjustment for high repeatability. Proprietary unit synchronization eliminates blocking and air gaps.

Recipe Management: Built-in process library ensures batch consistency
Unmanned Operation: Auto water/feeding/pH control, reduced labor costs
24/7 Production: Continuous operation, maximum efficiency

Customer Value

2x Production Efficiency, 99.9% Process Stability

Cost Control

Core Technology

Modular Deep Design + Efficient Heat Recovery + Reverse Osmosis Water Circulation

Our design saves every minute. Modular structure reduces floor space by 67% vs. traditional models. Efficient heat recovery and reverse osmosis systems lower water, electricity, and steam consumption.

Water Savings: 85% higher water efficiency vs. traditional methods
Energy Savings: Efficient recovery, significantly reduced steam consumption
Labor Savings: Compact automated design cuts labor costs by 50%

Customer Value

ROI in just a few months

Solid & Durable, Premium Components

Core Technology

European Imported Core Components + Thickened Stainless Steel Materials

Key electrical and control components use German and Italian premium brands. Precise quality control. Machine body uses 60% thicker stainless steel than competitors for extended equipment life and stable operation.

Premium Components: Ensures core performance and longevity
Solid Construction: Handles high-intensity continuous production
Asset Protection: High-quality equipment = your most reliable investment

Customer Value

Ultra-low Equipment Failure Rate

Ready to start your smart textile journey?

Contact our engineers now to get a free customized solution and detailed quote.

Technical Specifications

Comprehensive technical parameters and optional configurations

Specification	Parameter
Application	Rope washing for knit & woven fabrics
Max. Running Speed	Up to 100 m/min
Control System	PLC + Frequency Inverters
Steam Pressure	0.4 MPa
Compressed Air Pressure	0.4 MPa
Water Supply Pressure	0.4 MPa
Machine Dimensions (L×W×H)	Approx. 16000×3000×3300 mm (Customizable)
Power Capacity	~50 kW (Depending on configuration)
Water Consumption (Liquor Ratio)	1:5 ~ 1:12
